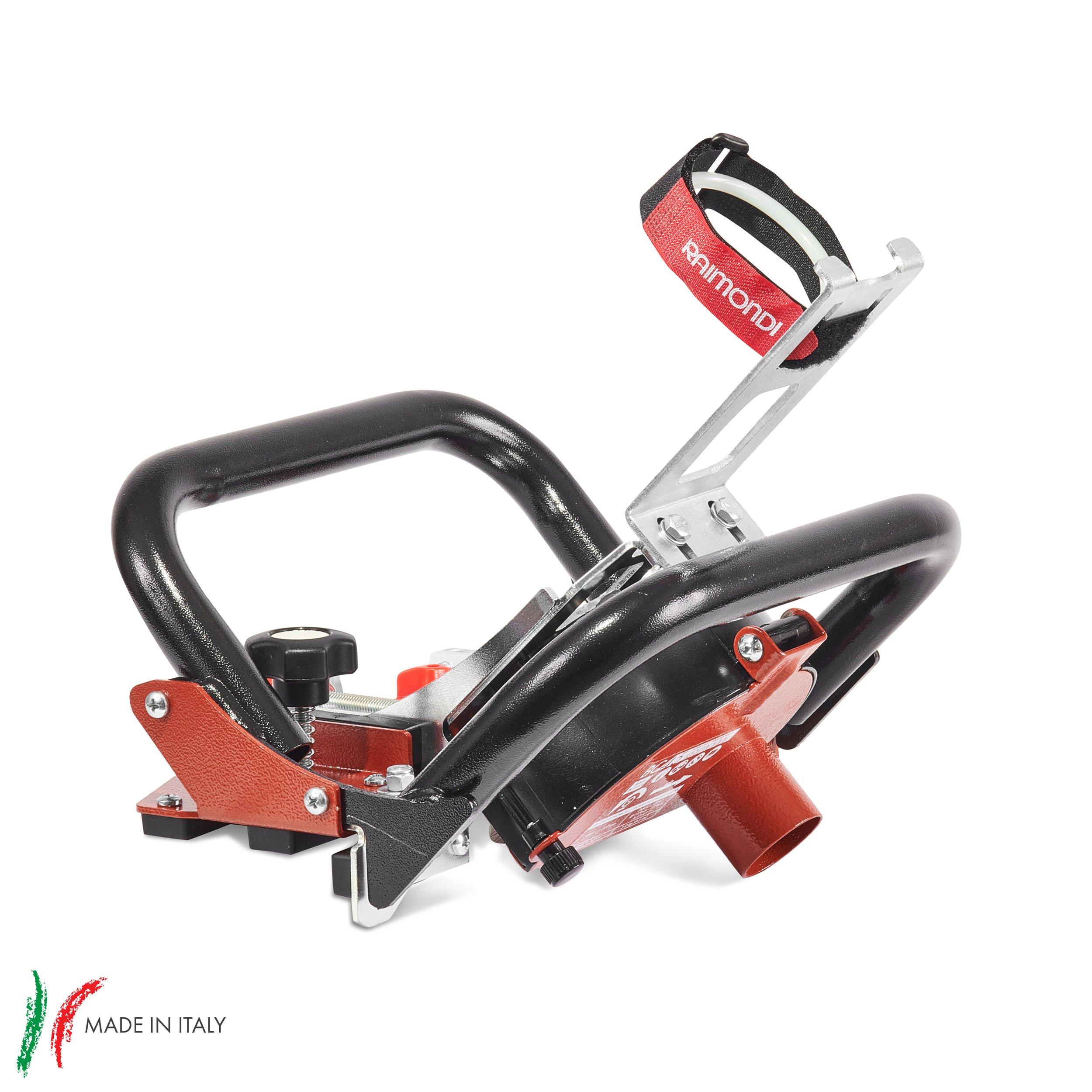

Raimondi Power Miter Cutter
Device To Perform 45° Miter Cut (“Jolly”)
- Device to perform 45° miter cut high-quality finishing (“jolly”) directly on the construction site (actual miter angle:
- 47°).

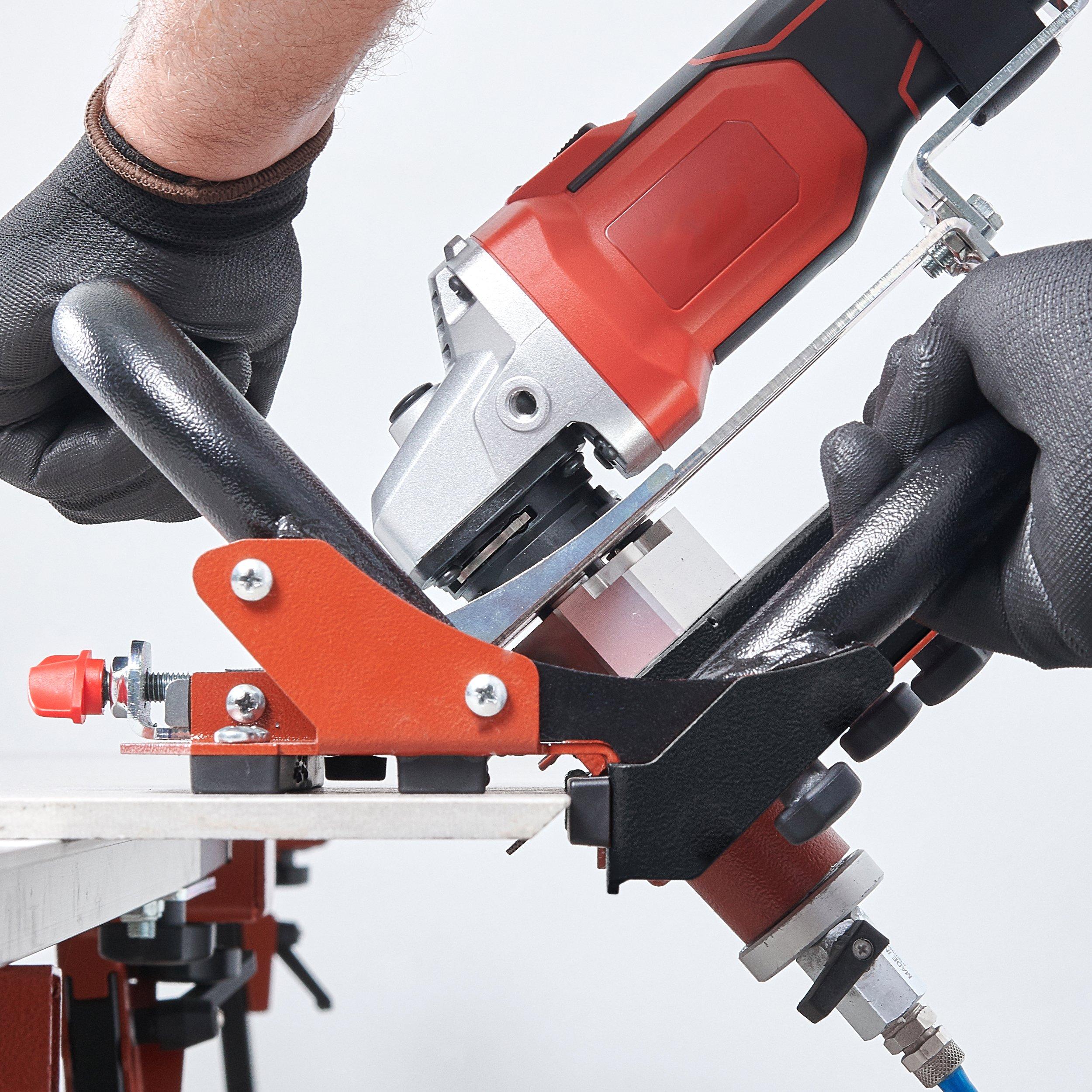

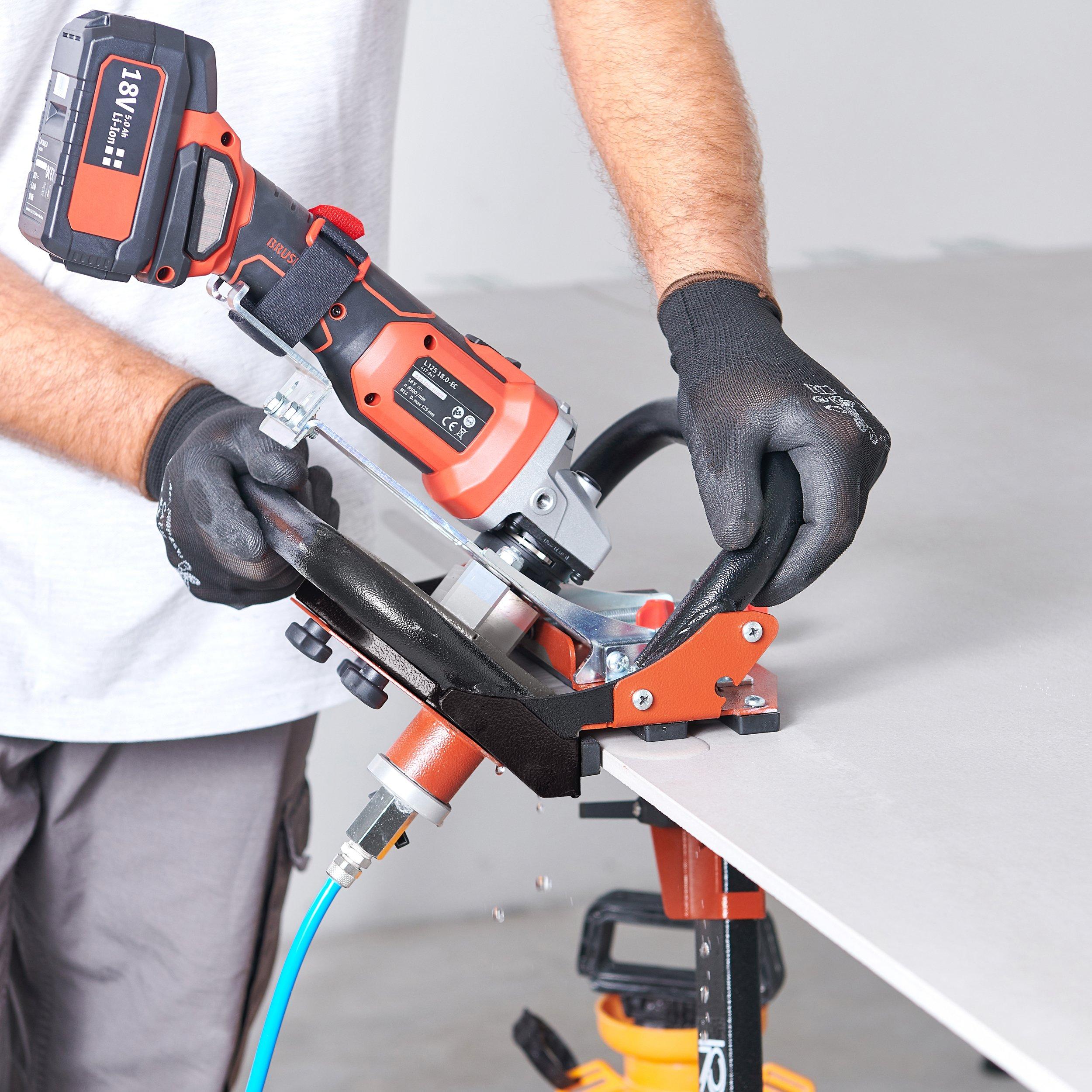

- It works leaning and sliding on the edge of the tile (or slab): this guarantees a fast and precise work execution and allows for working without any limit on length.
- The anti-scratch plastic slides ensure optimal smoothness on the slab/tile.
- Maximum slab/tile thickness: 5/8” (16 mm) with Ø 4 1/2” (115 mm) blade; 3/4” (20 mm) with Ø 5” (125 mm) blade.
- The two handles are designed to easily allow the necessary pressure during the entire length of the miter cut (entrance, slab side, exit) to guarantee both optimal results and maximum ergonomics.
- Cutting depth adjustment: by adjusting the dedicated knobs, it is possible to determine the amount of material to be removed (farther or closer to tile glaze). Once the adjustment is set, it stays for any tile/slab thickness.
- Blade tilt adjustment: by acting onto dedicated screw, blade can be tilted to prevent its rear chipping the edge
- of tiles/slabs.

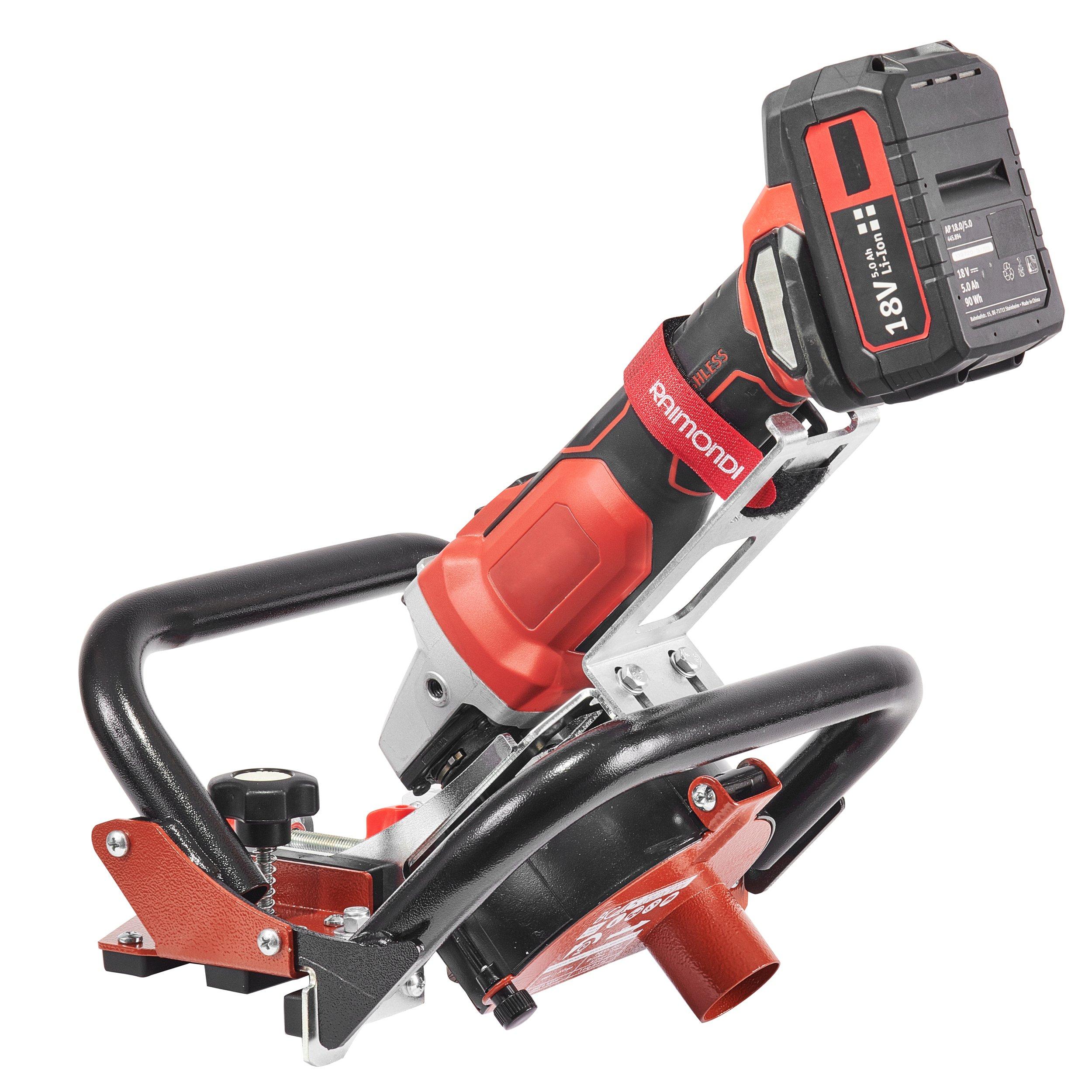

- Suitable with almost all angle grinders with power between 600-1100W thanks to the 5/8” arbor attachment.
- It features a dedicated connecting port for a water feeding kit or dust extractors.
- Wet use is highly recommended. Please note: Safety regulations may vary from State to State. Therefore, it is strongly recommended to refer to and comply with any regulations in force in the region where the product is used.

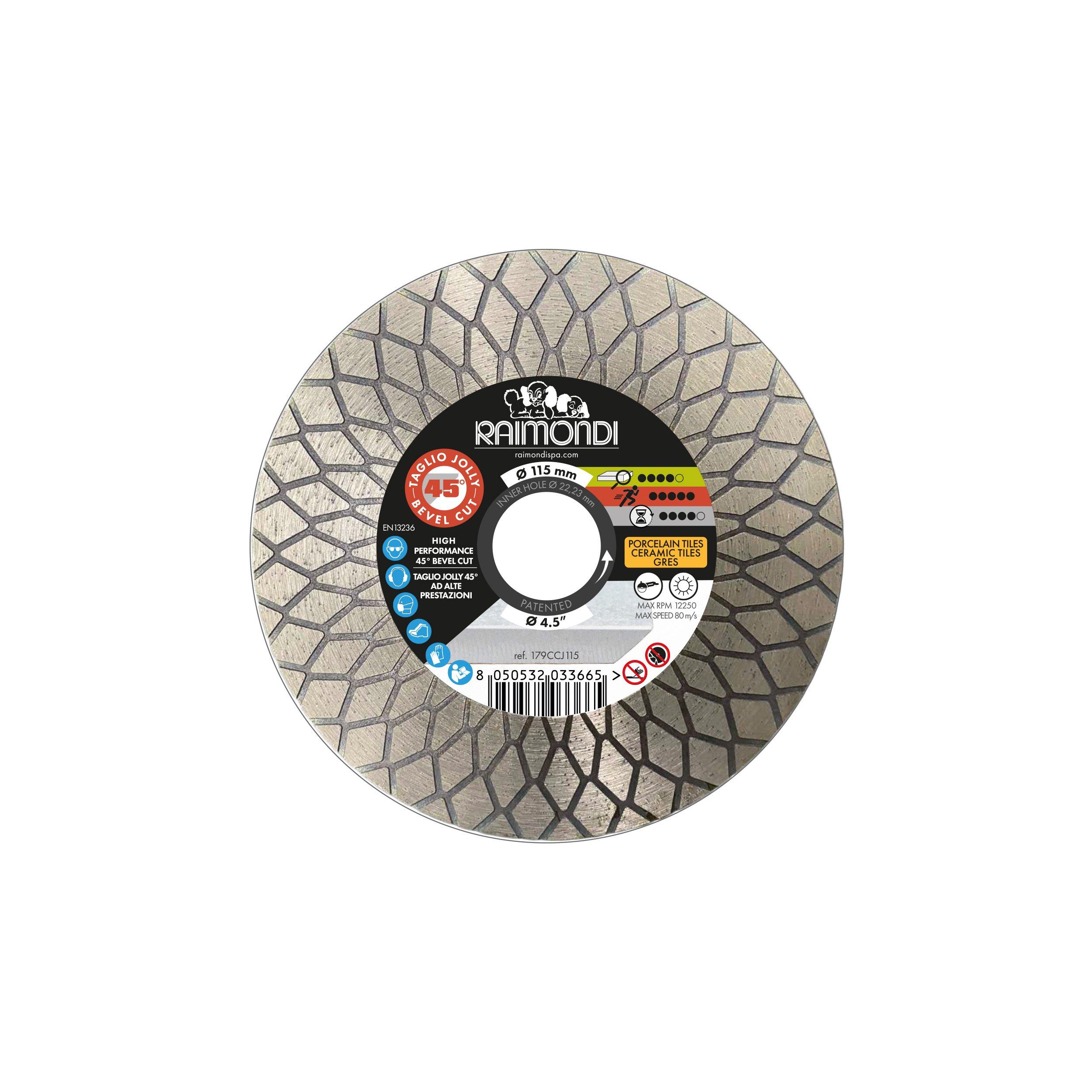

- It comes with high performance diamond disc for Jolly cut (45°) Ø 5” (125 mm), use and maintenance manual.
- Available as an accessory, the dedicated water feeding kit (sold separately).
- Angle grinder not included.
- Made in Italy.
