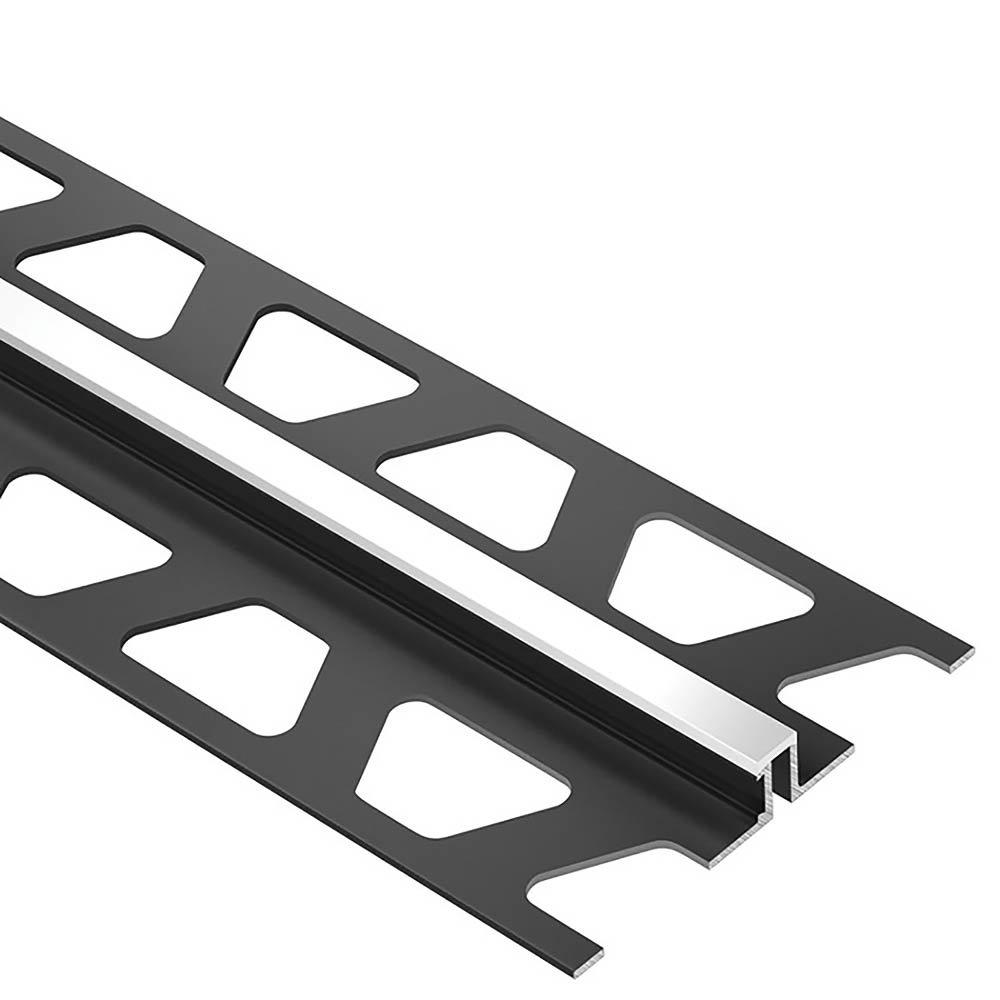

Schluter Dilex-Bws 3/16in. Movement Joint 11/32in. PVC Bright White

Wichita’s everyday low price!
$19.49 / piece Size: 11/32in. Color: Satin

Quantity

Quantity of pieces
$19.49 / piece
Limit of 9,999
We have adjusted the number of products entered as the maximum quantity threshold is 9,999. If you need to purchase a higher quantity, please contact Customer Care at 877-675-0002
subtotal
Item will be shipped and should arrive in 7-10 days.
You will be notified by email when the item arrives.
Shipping charges may apply.

Wichita - 0 pieces

Item will be shipped and should arrive in 7-10 days.

Shipping charges may apply. Items may arrive in multiple shipments.

Delivery details

Calculate Estimated Shipping + Handling Cost
Consider in-store pickup or contact Customer Care at 404-720-9120 for home delivery pricing.
Estimated Shipping + Handling Cost $16.23

Specifications

Dimensions
Size 11/32in.
Product Length (inches) 98.50
Product Width (inches) 2.10
Item Weight (lbs) 0.58
Details
Project Metal Trims & Transitions
Vendor Part Number BWS90BW
Color Satin
Color/Finish Family WHITE
Finish PVC
Shade Family Light
Installation & Warranty
Warranty

Commercial and/or Residential manufacturer product guarantee to give you peace of mind.

5 Year Limited
Placement Location Indoor
Installation Options

The surface for which the product can be installed upon. The surface should be clean, stable, and meet installation and warranty guidelines prior to installation.

Floor/Wall
Commercial / Residential Use Residential/ Commercial
Show More

Product Details

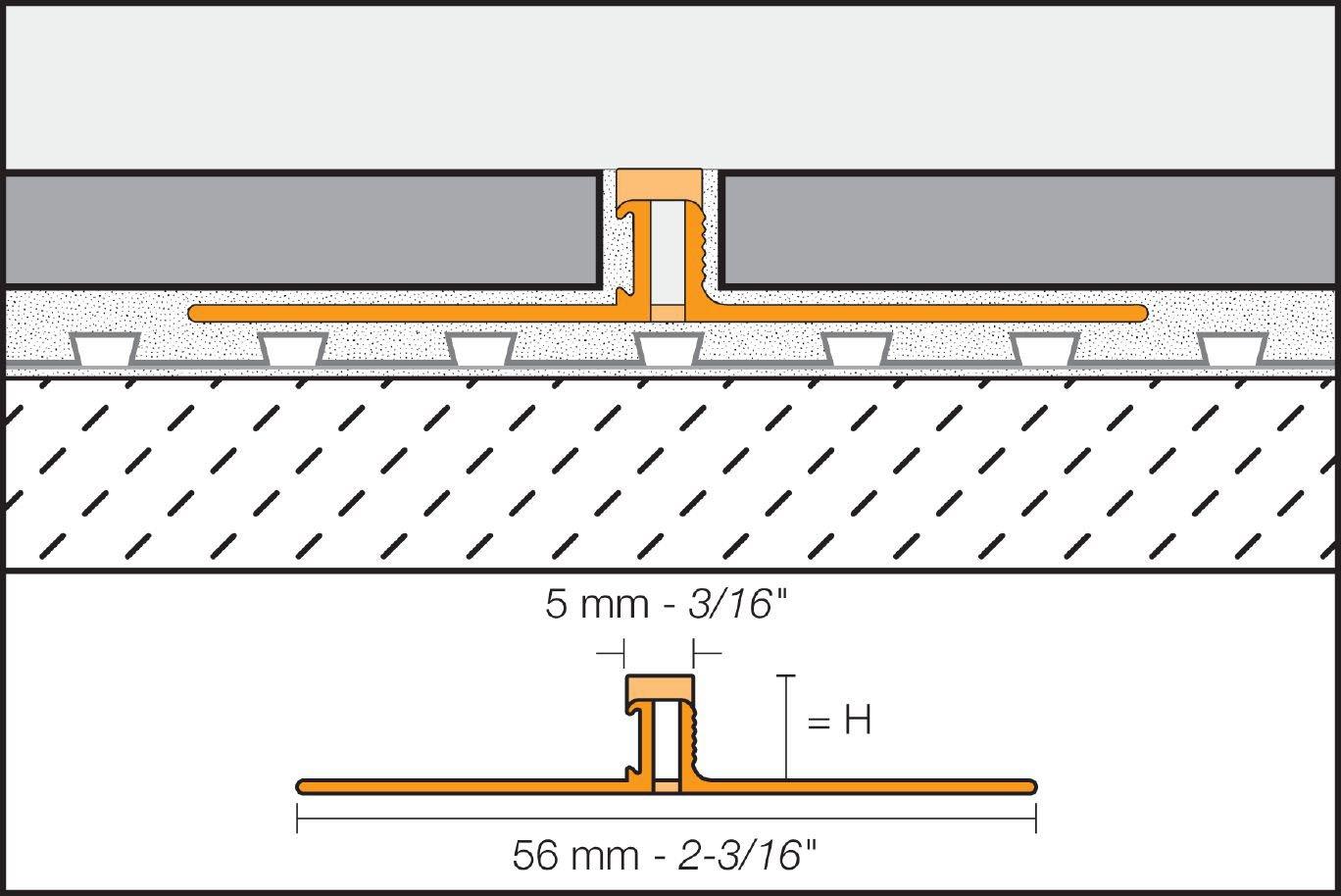

Schluter®-DILEX-BWS features trapezoid-perforated anchoring legs, made of recycled rigid PVC, which are secured in the mortar bond coat and provide edge protection for adjacent tiles. The profile separates individual fields in the tile covering and accommodates movement via the soft chlorinated polyethylene (CPE) movement zone, which also forms the visible surface. The movement zone is only 3/16" (5 mm) wide, matching common grout joint widths. The profile absorbs relatively limited movements, given the width of the movement zone. This should be taken into account when evaluating the requirements for a specific application. If larger movements within the covering are anticipated, the DILEX-BWS may be installed with greater frequency to create smaller fields, or the DILEX-BWB (3/8", 10 mm movement zone) may be used.
